Description

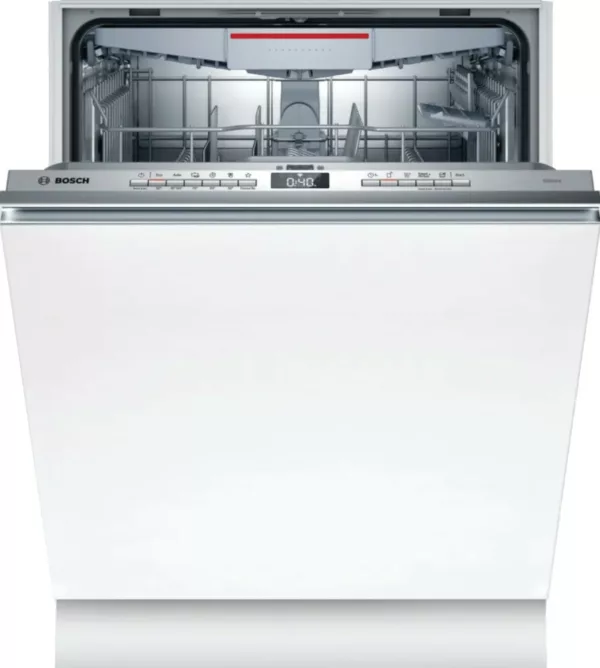

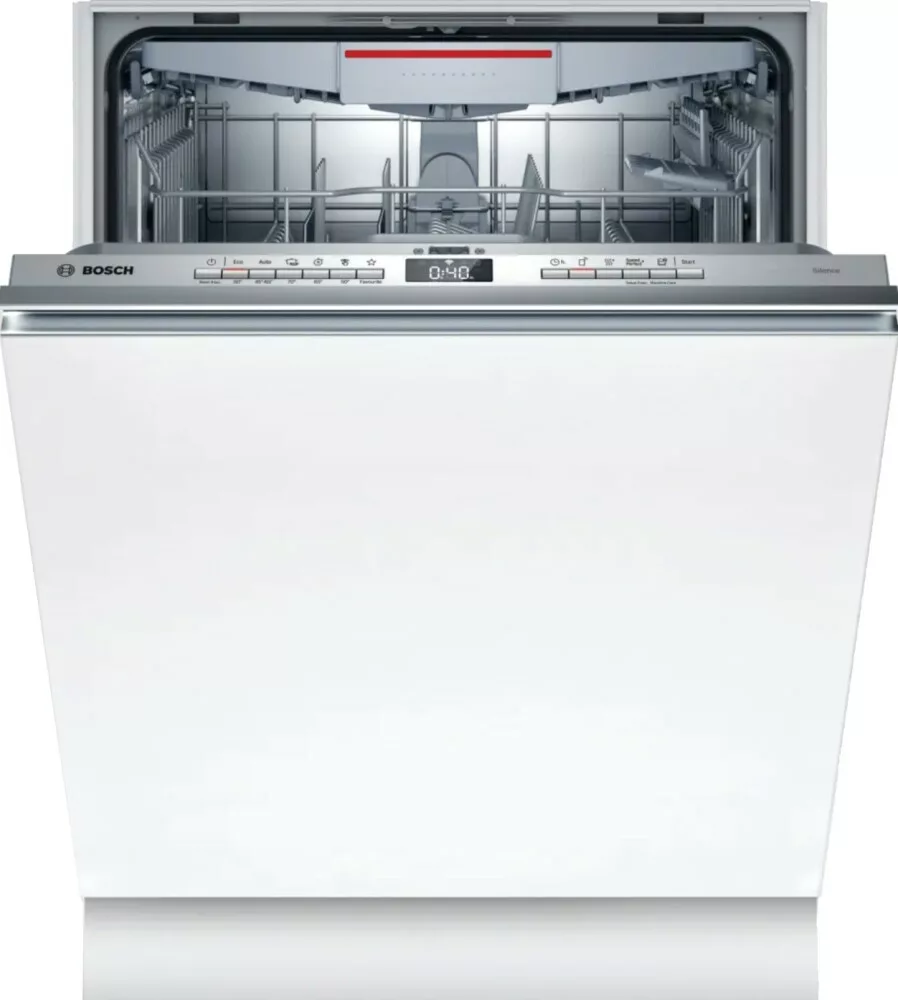

Bosch SMV4HVX40E totally integrated dishwasher cm. 60 – 13 envelopes
General information

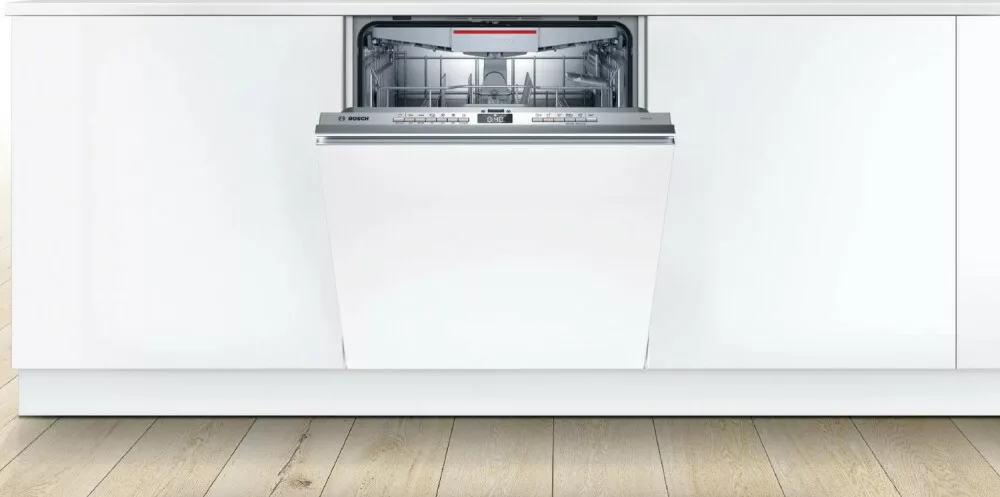

Design: fully integrated
Installation method: built-in
Display color: black
Removable top: no
Decorative frame: No
Vario sliding belts: no
Base adjustment: height/depth

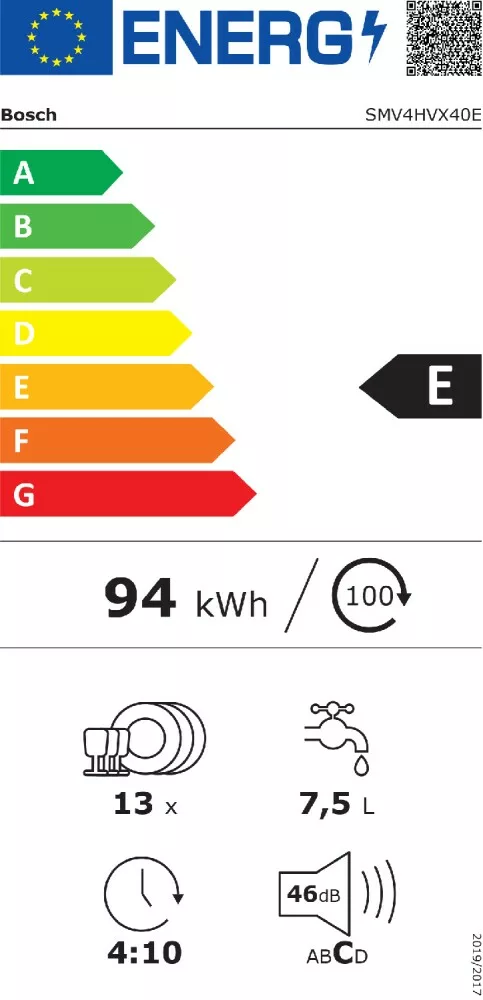

Efficiency
Energy efficiency class: E
Noise emission (EU 2017/1369): 46 dB(A) re 1 pW
Noise class (EU 2017/1369): C
Water consumption in liters per Eco program cycle (EU 2017/1369): 7.5 l
Duration of the Eco program (EU 2017/1369): 4:10
Energy consumption for 100 Eco program cycles (EU 2017/1369): 94 kWh
Maximum number of seats: 13
List of programs
Automatically 45-65°C
Quiet 50°C
echo
favorite
pots
Hourly
Additional features
Extra dry
Machine care
Vario Speed Plus
Remote start
equipment
Drying process: heat exchanger
Third loading level: Vario3 cutlery drawer
Rackmatic: Yes
Standard equipment: vapor protection plate

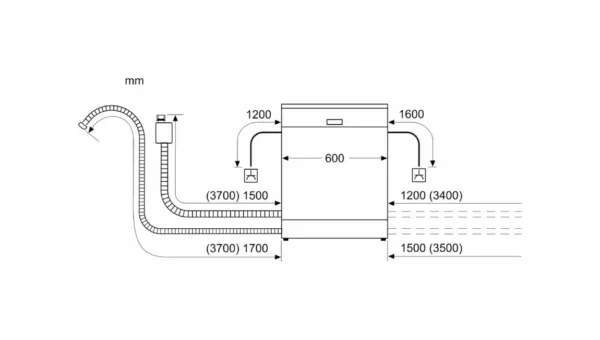

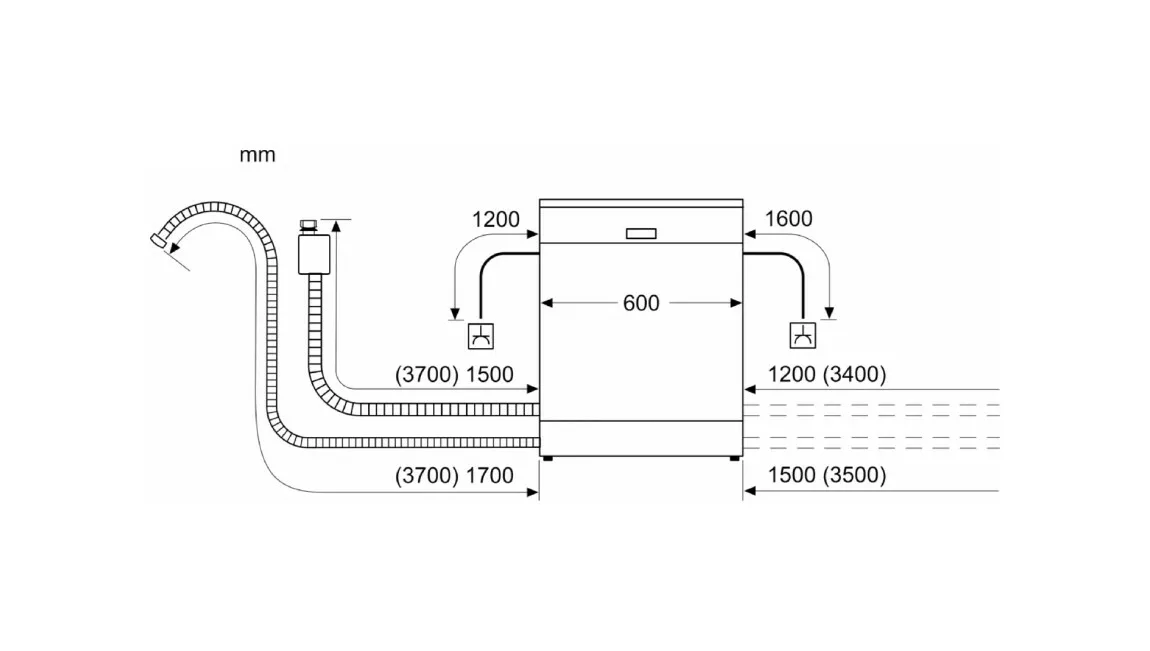

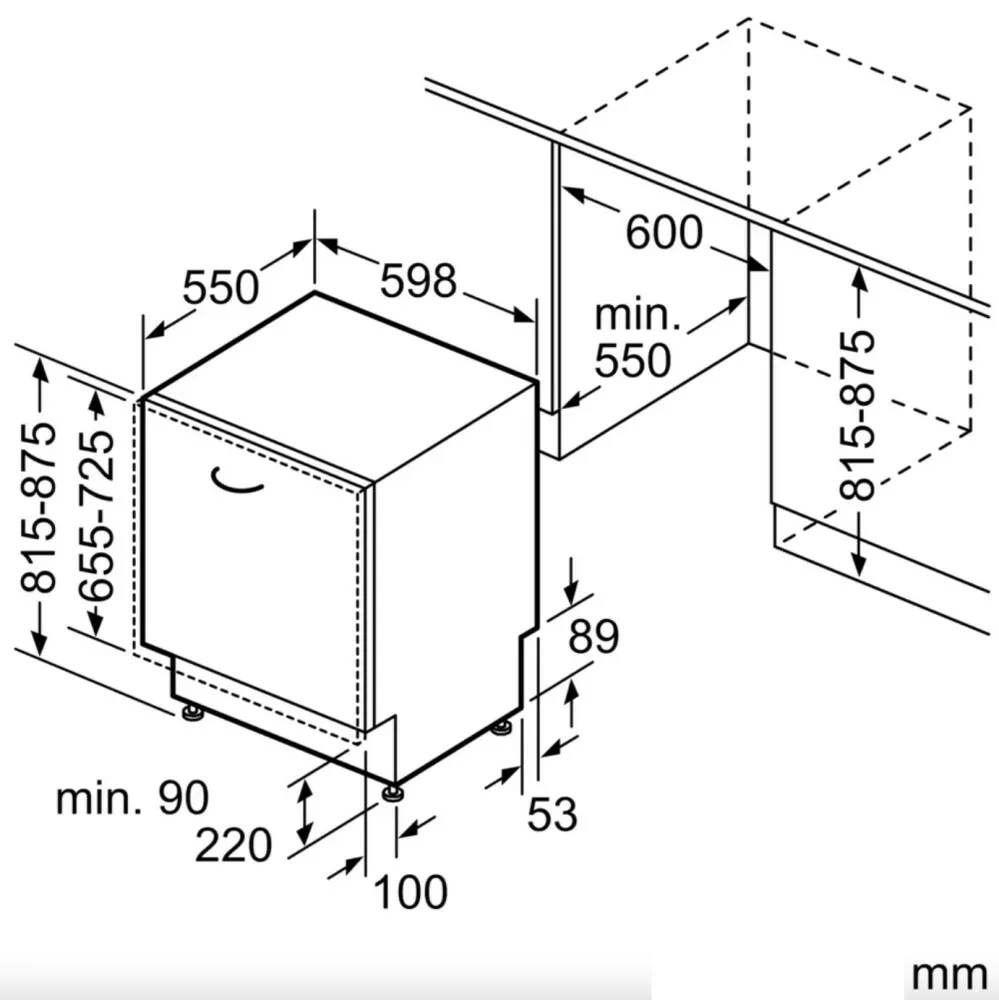

Dimensions and weight
Device dimensions (HWxD): 815 x 598 x 550 mm
Device depth with door open 90° (mm): 1150 mm
Maximum installation height (mm): 875 mm
Minimum installation width (mm): 600 mm
Maximum installation width (mm): 608 mm
Installation depth (mm): 550 mm
Removable top table height (mm): 0 mm
Net Weight (kg): 35.6kg
Comfort
Progress indicator: acoustic signal, water inlet, program end indicator
OpenAssist: No
Timelight: No

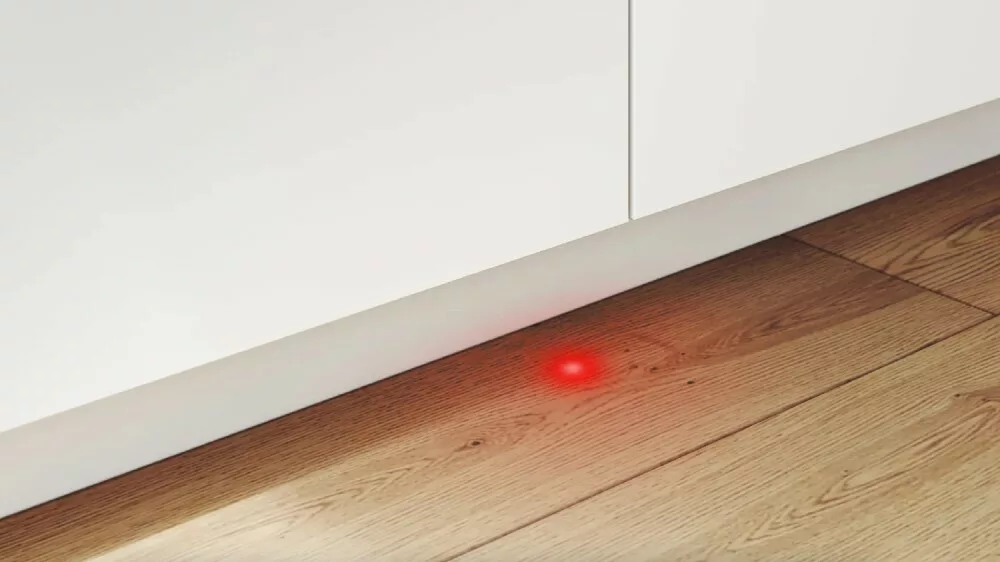

InfoLight: red
Status light: No
Mild emotion: no
Emotion Light Pro: No
Precision glass protection: no
EcoSilence Drive motor: yes
Aqua sensor: yes
ActiveWater Eco: yes
Detergent detection: yes
network
Home Connect: Yes
Features home connection: remote control and control
Security
AquaStop anti-flooding system: yes
Optional accessories (contact us for more information)
SMZ5100 : Vario cutlery basket
SMZ5300 : Holder for 4 large cups
Active water Eco
The intelligent water saving function allows you to use minimal resources for each wash cycle. For example, ActiveWater Eco dishwashers in the reference program with the optimized and hygienic washing option only use between 6.7 and 7.5 liters* of water. *depending on model
Extra dry
Activating the ExtraDry function dries the dishes particularly thoroughly thanks to the higher temperature during the rinse cycle and the longer drying phase at the touch of a button. This means that even plastic dishes such as baby bottles or picnic plates and cutlery are perfectly clean and dry. This means that additional manual cleaning is not necessary. Save time with Bosch dishwashers!

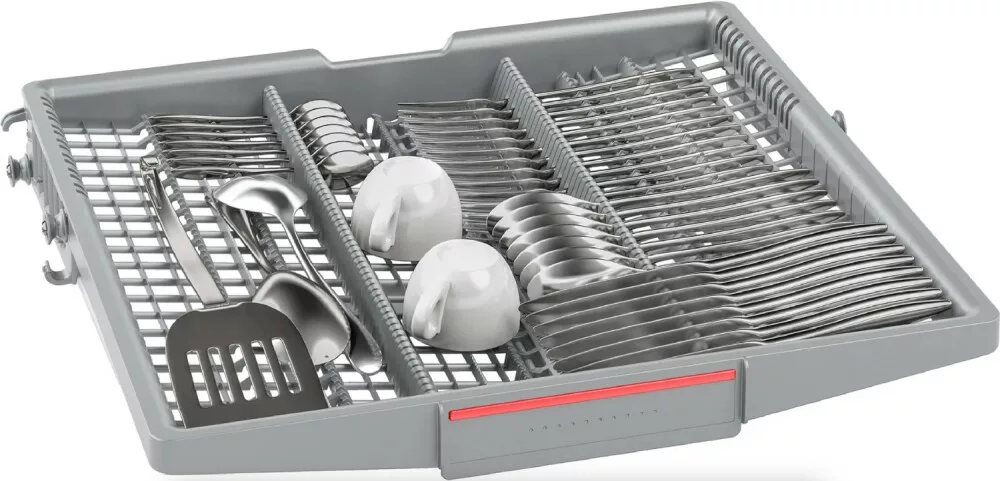

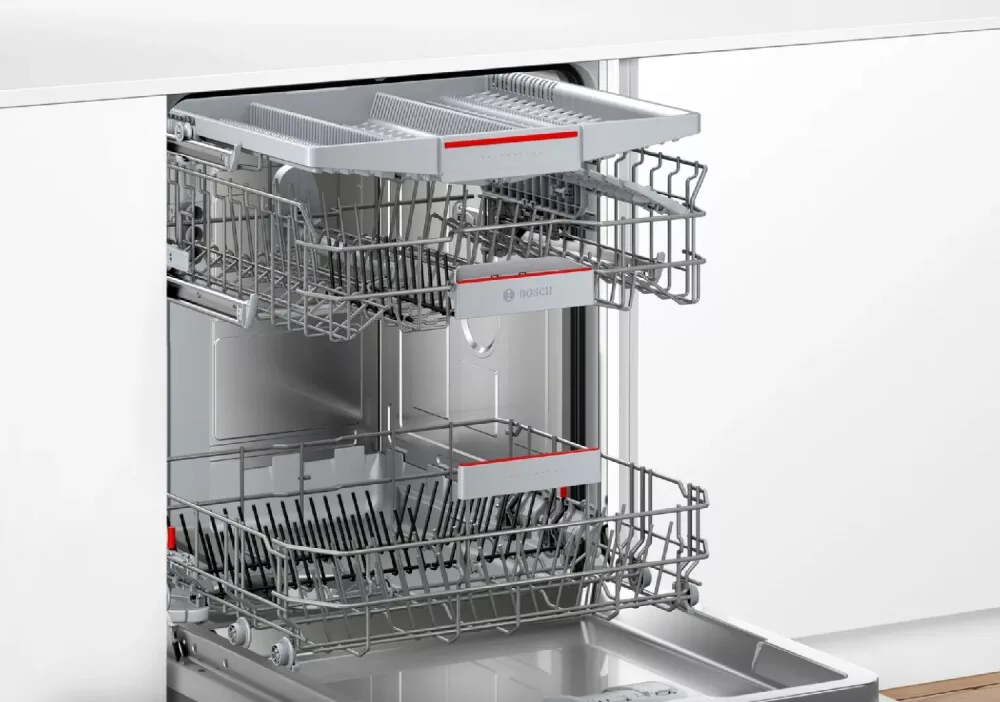

Vario drawer3
The Vario3 drawer is an additional level in the upper part of the dishwasher. It’s the perfect place for cutlery and small kitchen utensils like ladles, whisks and even espresso cups. The additional level gives you more freedom when loading the dishwasher and more space. Vario3 can replace the cutlery basket, creating space for more place settings in the lower basket. Vario3 – more options!

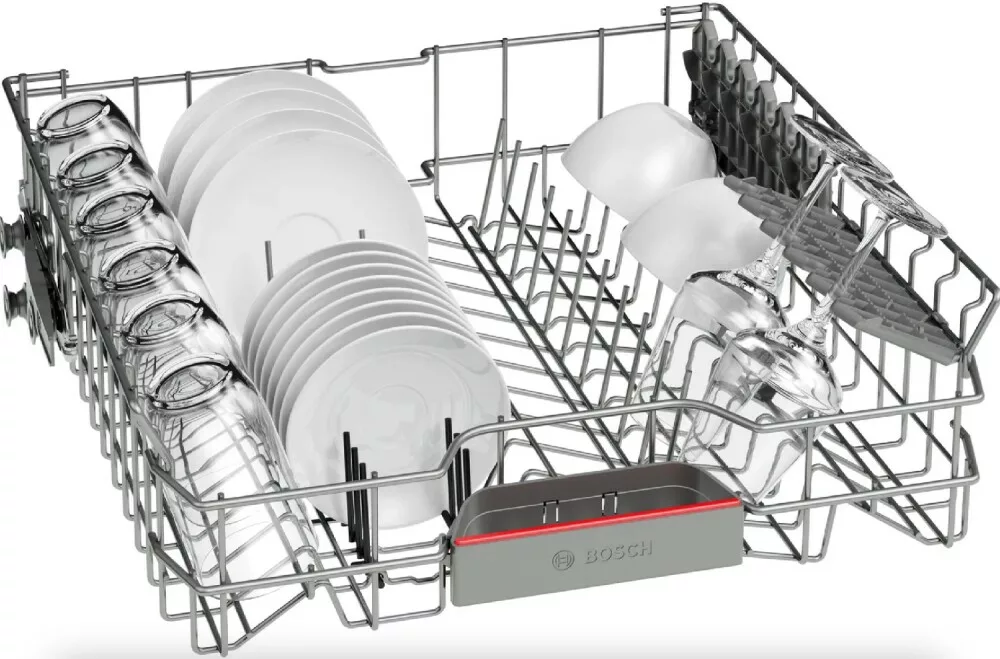

rackmatic
The Rackmatic upper basket adjustment system is used to adapt the interior to current needs. The system allows you to change the position of the basket to different heights, and the selected position can be easily changed even when the basket is full. This allows you to adapt the interior to your needs, even for very high plates in the lower basket or tall glasses or cups in the upper basket.
Whisper program 50°C
The Silent 50°C program allows you to wash your dishes with minimal noise, without disturbing the peaceful atmosphere of your home. Reduces the operating volume of the device by at least 1.5 times the volume of the Eco 50°C reference program. This is particularly useful at night and in apartments with an open kitchen to the living room.
Silence upon request
From time to time throughout the day, everyone needs a moment of silence to focus. The “Silence on demand” function can be activated via the Home Connect app, which mutes the dishwasher if necessary. Quiet mode reduces noise while the dishwasher runs for up to 30 minutes. The “rest on demand” feature allows you to focus on what matters most to you.
Remote control
Make the dishwasher listen to your commands when you want to start or stop its operation, or detect the current phase of the wash cycle. Your modern dishwasher is equipped with voice control*, compatible with Alexa, Google Assistant. *Solution available depending on country and language support
Tablet counter
Running out of dishwashing tabs is the last thing you want when you need to do the dishes. The tablet counter in the Home Connect app tracks your consumption and automatically notifies you when you have the last five tablets left based on your last purchase. Finally there is a dishwasher that takes care of itself
Notifications and updates
Constantly waiting and checking for the dishwasher to finish working can be a waste of time and cause unnecessary stress. The Home Connect Mobile App relieves you and helps you use your time more efficiently. If desired, automatic push notifications can be sent directly from the dishwasher to your mobile device, conveniently informing you about the current status of the washing program and other useful information. Multitasking at home and on the go just got easier!
